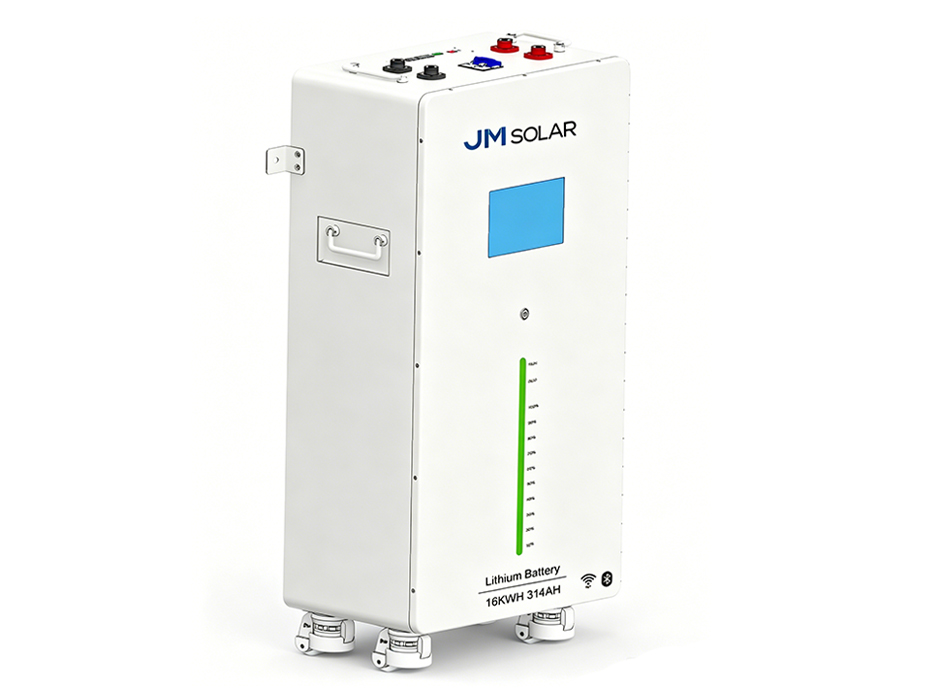

Floor-standing residential energy storage systems

Jinmega Floor-standing residential energy storage systems deliver reliable, safe, and cost-effective home solar energy backup solutions for global households. We provide full-capacity customized options, including 10.24kW and 16kW floor-standing energy storage batteries, perfectly matching diverse home power consumption needs. Equipped with smart BMS our home battery storage maximizes solar self-consumption, supports peak-valley electricity arbitrage, provides stable emergency power backup during outages, and enables full home energy independence.

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

STABLE

·Designed with a high level of safety features, including reliable lithium iron phosphate (LiFePO4).

·Can be cycled up to 6000 times (51.2V 200AH/ 8000 times (51.2V 314AH) ).
SIMPLE

·Suitable for floor-standing installation.

Compact size and easy to move, making

it an ideal choice for indoor power supply.

·Compatible with multiple inverter protocols from various brands, and can communicate directly with computers.
EFFICIENT

·Up to 15 units can be connected in parallel,expandable to 153.6/241.15kWh.

·Full-range BMS Protection.
·Suitable for off-grid or hybrid systems.

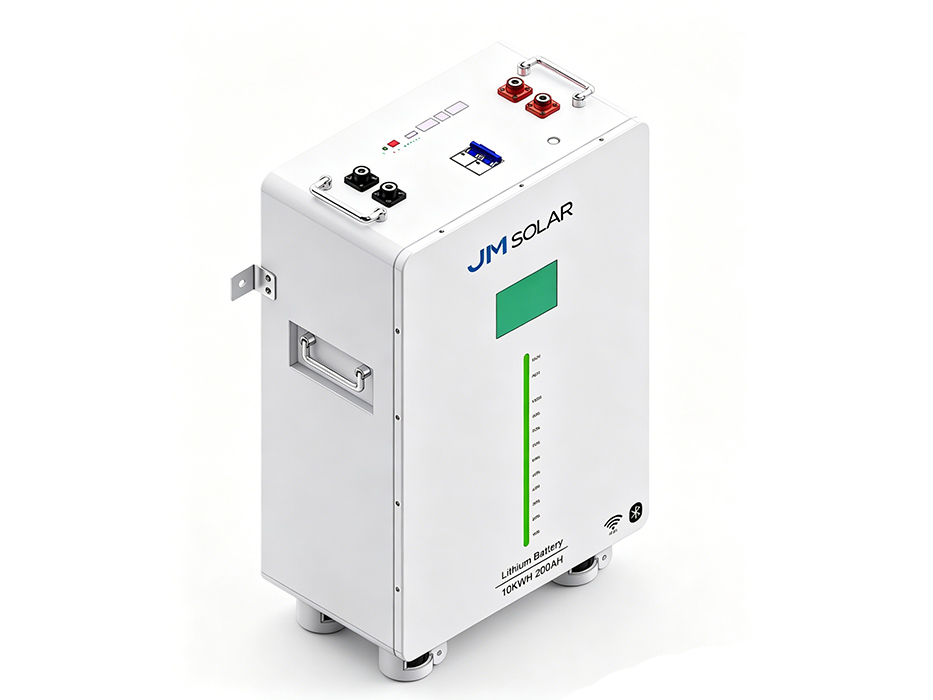

Easy Installation & User-Friendly

Equipped with premium universal rolling wheels, the units support free, flexible and labor-free position adjustment, enabling users to effortlessly move the battery between photovoltaic carports, villa courtyards, equipment rooms and other spaces according to actual power demand.

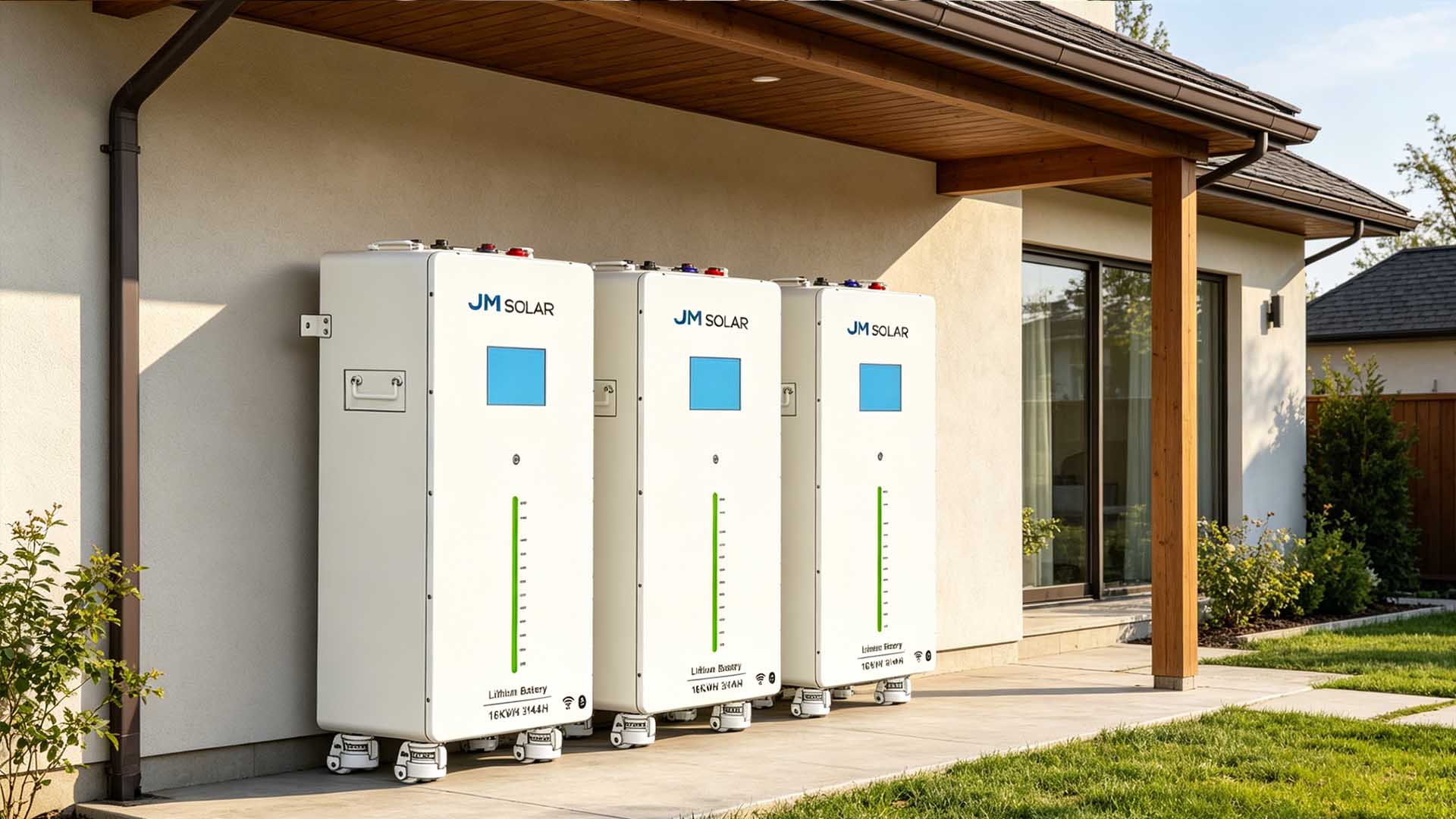

Solar battery storage for self consumption

High Efficiency & Energy Saving

Effectively stores surplus solar power, reduces dependence on municipal grid power, realizes household energy self-sufficiency, and helps users achieve green and low-carbon home energy life.

10.2Wh Residential Energy Storage 5-Units Parallel Connection Solution

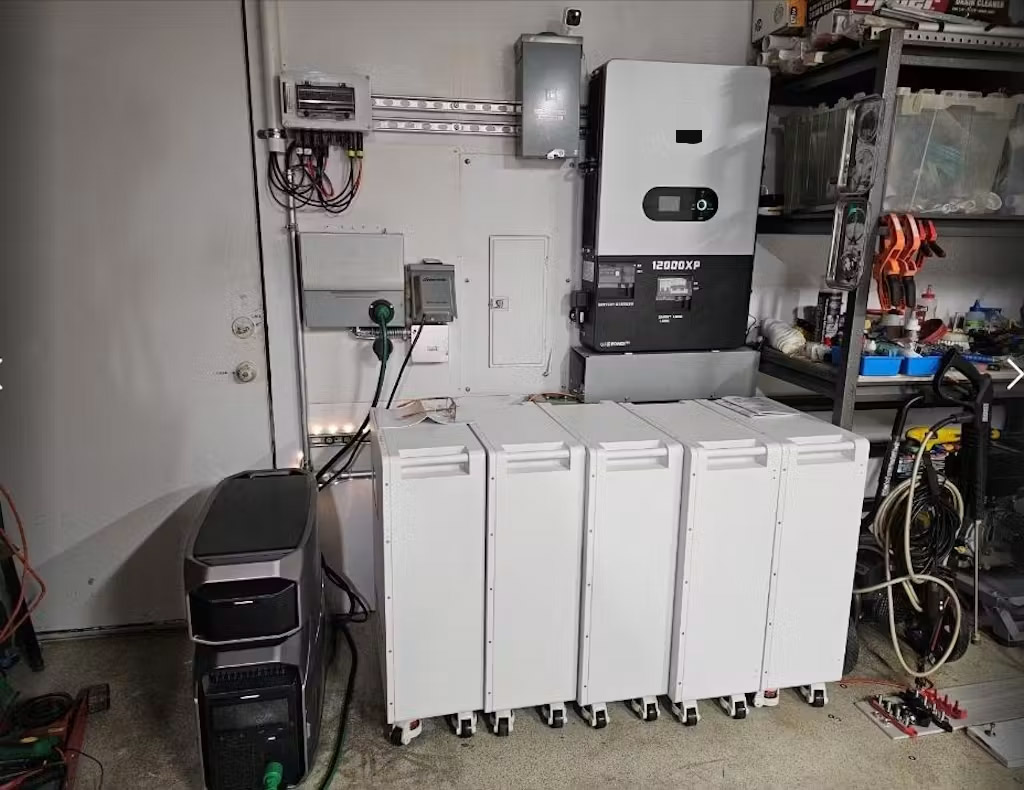

5.12kWh Residential Energy Storage 5-Units Parallel Connection Solution

SPECIFICATIONS		SPECIFICATIONS
MODEL	51.2V 200AH/51.2V 314AH	Maximum Number of Units in Parallel	15 units
Nominal Voltage	51.2V	Charge Cut-off Voltage	58.4V
Nominal Energy	10240Wh/16077Wh	Discharge Cut-off Voltage	43.2V
Standard Charge Current	50A	Maximum Charge Current	100A
Cycle Life	6000(80%DOD, 0.5C, 25℃)/ 8000(80%DOD, 0.5C, 25℃)	Maximum Discharge Current	100A
Battery Type	LFP	Weight	97kg/130kg
Communication	CAN/RS485/RS232	Dimensions	630470291mm/ 807520252mm
