Wall-Mounted Residential Energy Storage System

Home Integrated solar power Solution

Wall-Mounted Residential Energy Storage System

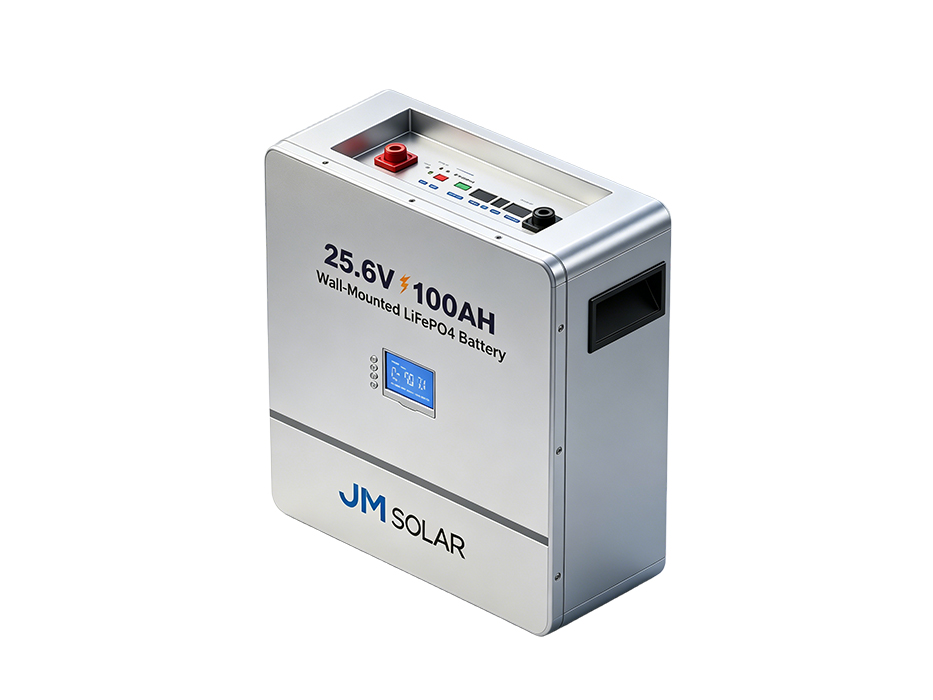

25.6V 100Ah wall mounted LiFePO4 battery

Wall-Mounted Residential Energy Storage System

Jinmega Wall-Mounted Residential Energy Storage System deliver reliable, safe, and cost-effective home solar energy backup solutions for global households. We provide full-capacity customized options, including 2.56kW and 5.12kW wall-mounted energy storage batteries, perfectly matching diverse home power consumption needs. Equipped with smart BMS our home battery storage maximizes solar self-consumption, supports peak-valley electricity arbitrage, provides stable emergency power backup during outages, and enables full home energy independence.

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

STABLE

·Designed with a high level of safety features, including reliable lithium iron phosphate (LiFePO4).

·Can be cycled up to 6000 times

Suitable for off-grid or hybrid systems.
SIMPLE

·Supports wall-mounted installation.
·Compact size and easy to move, making it an ideal choice for indoor power supply.

·Compatible with multiple inverter protocols from various brands, and can communicate directly with computers.
EFFICIENT

·Up to 15 units can be connected in parallel,expandable to 38.4/76.8KWh.

·Full-range BMS Protection.

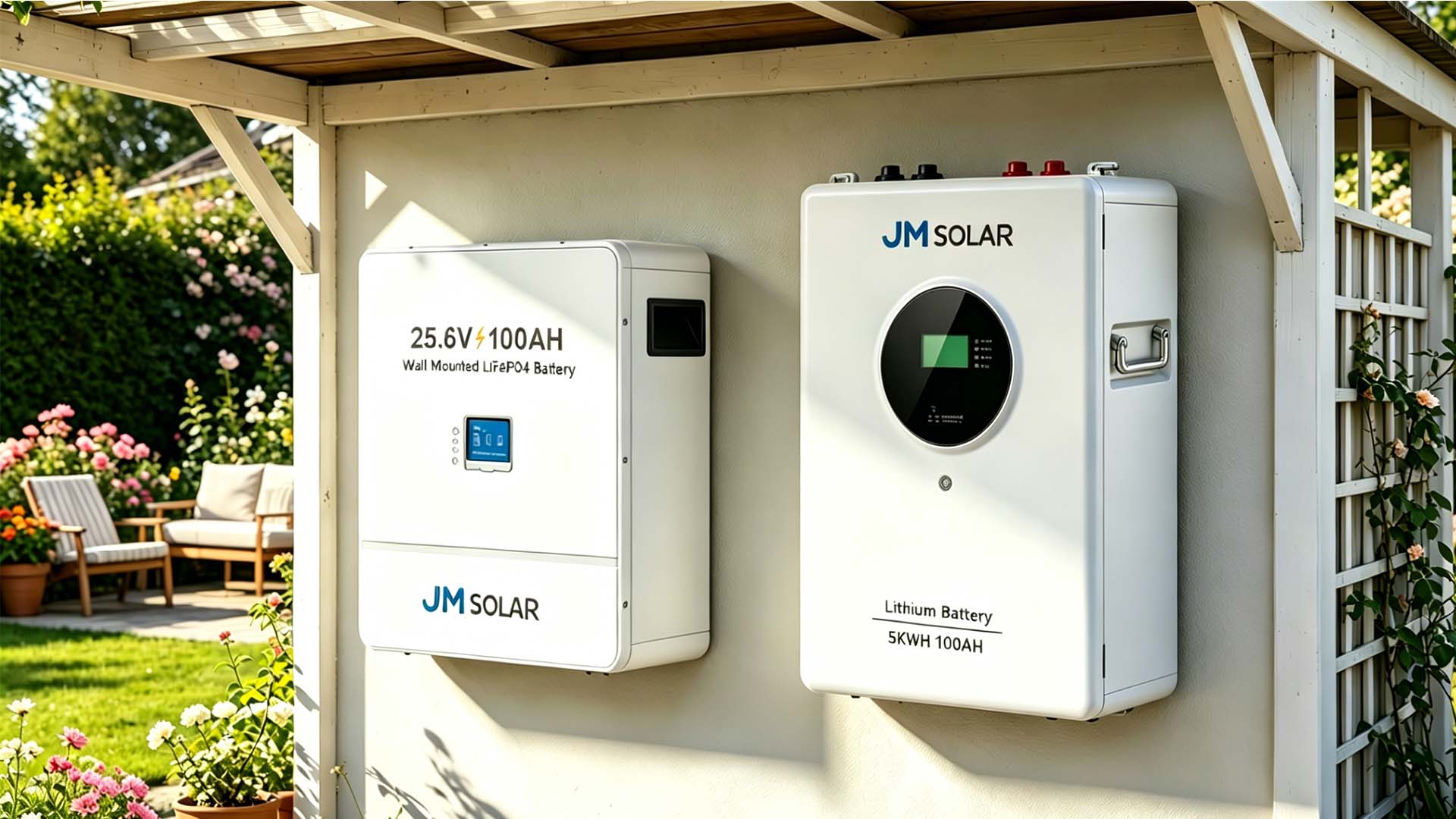

51.2V 314Ah lithium battery for off grid

Easy Installation & User-Friendly

Wall-mounted installation saves household space greatly. Plug-and-play and simple wiring design lowers installation and maintenance thresholds, suitable for both new solar-storage systems and old system upgrades.

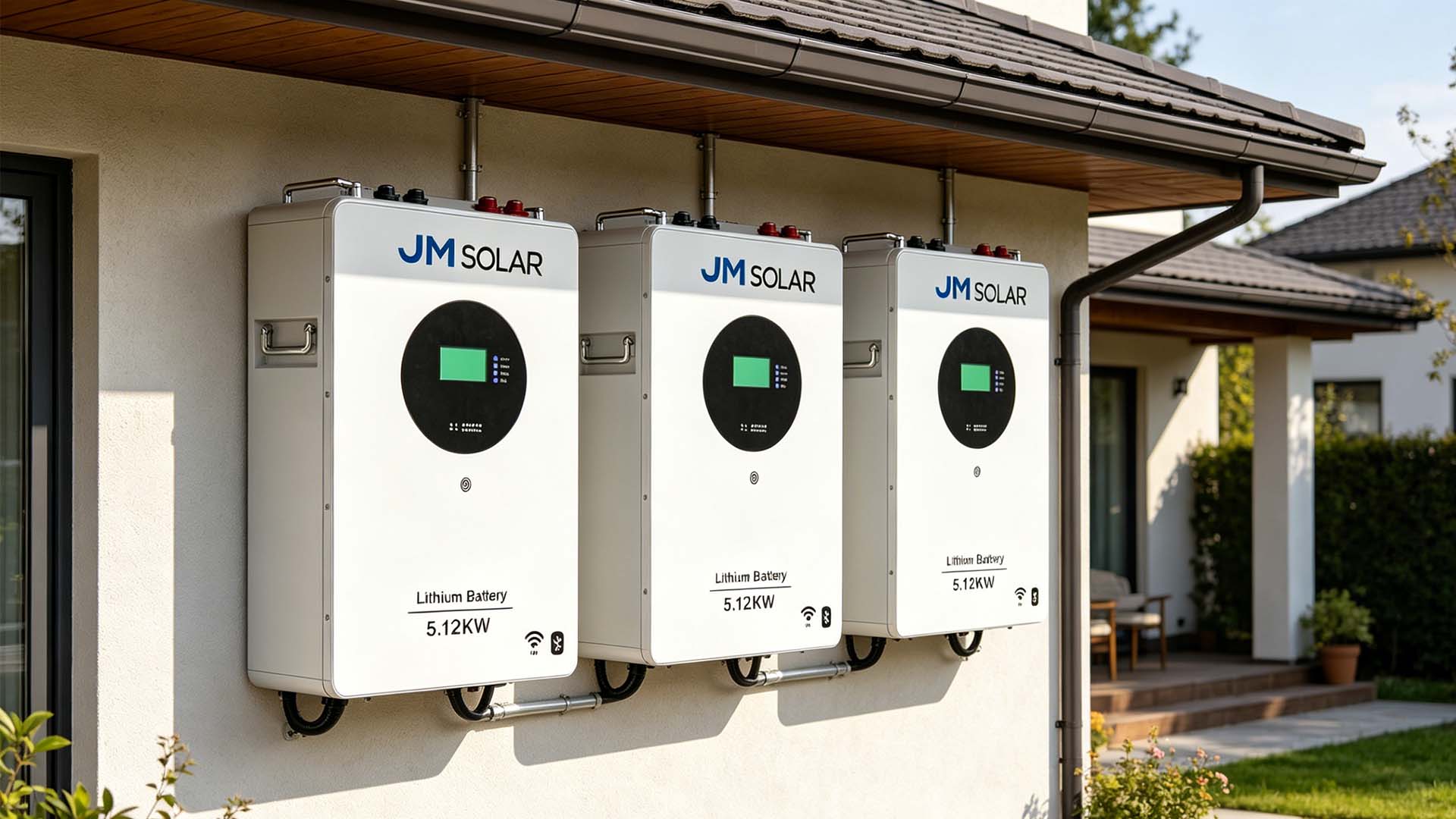

All in one residential solar battery storage

High Efficiency & Energy Saving

Adopting high-quality lithium battery cells with high energy conversion efficiency and low energy loss. Efficient heat dissipation design ensures stable long-term operation, effectively reduces household electricity bills, and achieves sustainable green energy utilization.

5.12kWh Residential Energy Storage 5-Units Parallel Connection Solution

SPECIFICATIONS		SPECIFICATIONS
MODEL	25.6V 100AH/51.2V 100AH	Maximum Number of Units in Parallel	15 units
Nominal Voltage	25.6V/51.2V	Charge Cut-off Voltage	29.2V/58.4V
Nominal Energy	2560Wh/5120Wh	Discharge Cut-off Voltage	21.6V/43.2V
Standard Charge Current	50A	Maximum Charge Current	100A
Cycle Life	6000(80%DOD, 0.5C, 25℃)	Maximum Discharge Current	100A
Battery Type	LFP	Weight	31.5kg/53kg
Communication	CAN/RS485/RS232	Dimensions	405380193mm/ 580450216.5mm

Hot Tags : Wall mounted LiFePO4 battery Residential energy storage battery Home solar battery storage JM SOLAR lithium battery 5kwh wall mounted battery 10kwh home energy storage system
